Heating Panels with Border LED Light

  • MODEL NUMBER
    BKD1-HH1206L
  • WARRANTY
    2 years
  • POWER SOURCE
    Electric
  • INSTALLATION
    Ceiling
  • FUNCTION
    Adjustable Thermostat;Overheat Protection;Lighting
  • AFTER-SALES SERVICE PROVIDED
    Return and Replacement
  • HEATING POWER
    800W
  • LED POWER
    40W

PRODUCT DETAILS

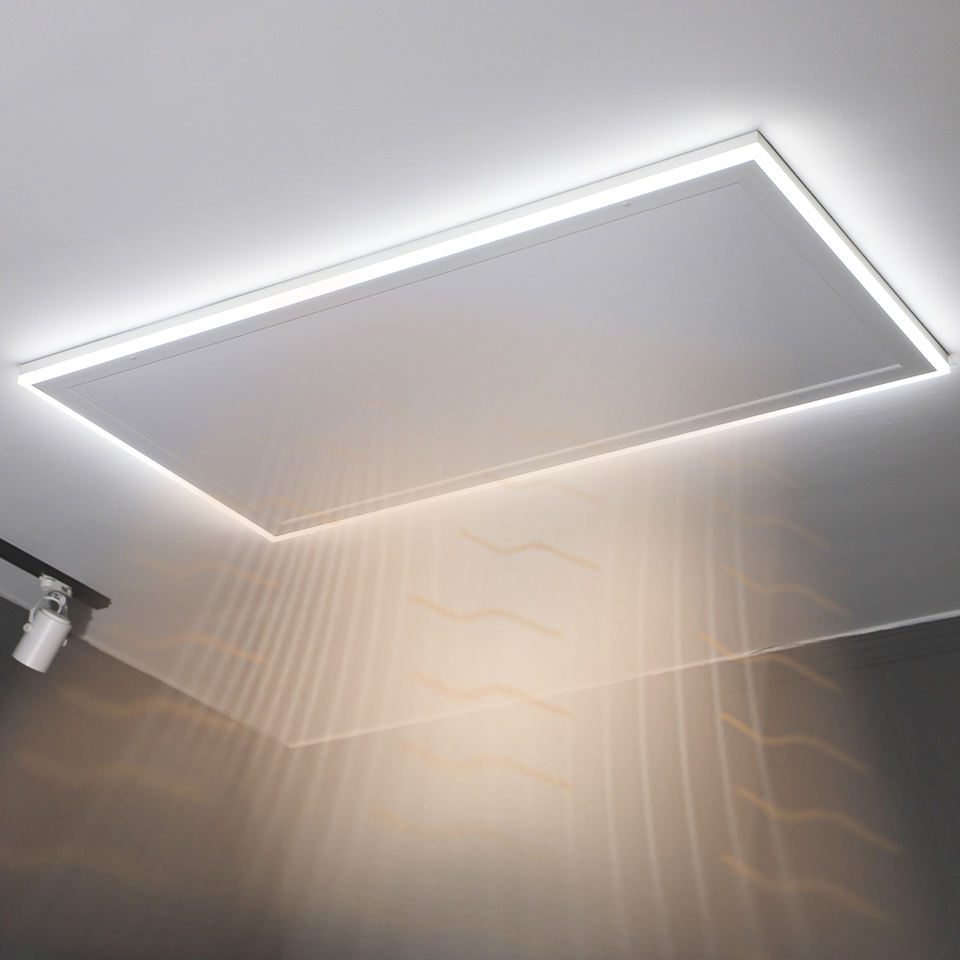

The ceiling infrared heater panel with surrounded LED is designed to provide an efficient, comfortable, and healthy heating system for any domestic users.

It can reduce air circulation and help to maintain a clean, silent, dust free environment. It is not only an infrared heating panel, but also a LED light.

A wide range of devices available in a huge choice of colors, sizes and styles.



IR ceramic coating surface



Our patented technology can enhance far infrared radiation. And it has flame retardancy, high temperature resistance, and will not

turn yellow.

Simple and Practicable Structure



Product design solemn thick, massive and steady, firm and durable, really the first choice for space heating in household use.

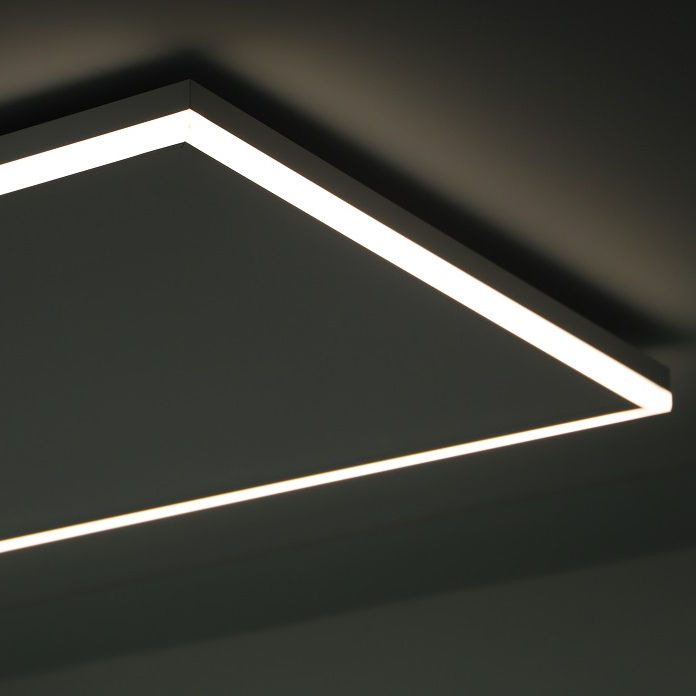

Perfect Cornor



The white aluminum alloy frame is surrounded by a circle of LED lights. The LED surface is covered with a diffuser plate, which makes the product look more beautiful.

The corners fit together perfectly, no any gap or metal burr.

1. Switch of LED light
2. Thermostat of Heater
3. Date and time information display
4. Indoor temperature and set temperature
5. Remote control by pairing to the panels
6. One remote control can be paired with more than one panels.



LED strips



It is 120 leds/m.

The LED light can be single 3000K warm or 6000K cool white.

Double 3000K warm and 6000K cool also available.



Single color(optional):

*White Light 6000k

*Warm Light 3000k

Brightness adjustment(100%, 75%, 50% and 25% / 100% to 5%)

Tricolor:

1. White Light 6000k(60leds/m)
2. Warm Light 3000k(60leds/m)

3. Mixed(120leds/m)

Brightness adjustment(100%, 75%, 50% and 25% / 100to 5%)



SPECIFICATION



Available in different sizes and powers
Model number
Size
        Heating Power
 LED Light Power
Box size
BKD1-HH0606L
655*630*35mm
370W
30W
87*74*7cm
BKD1-HH1006L
1080*630*35mm
660W
37w
129*74*7cm
BKD1-HH1206L
1280*630*35mm
800W
40w
149*74*7cm
Features
Surface temperature
Mainly 150℃
Surface material
IR ceramic coating
Cable length
1.9m without plug
Frame
White Aluminum
Certification
CE,RoHS
Voltage Input
220-240V/50HZ
Warranty
2 years
Heating element
Carbon crystal


Waterproof LED Light Strip
LED: 120 leds/m
Power: 10W/m
Color Temperature: 3000k-6000k
Working Lifetime(Hours): 50000
Ingress protection ration: IP52

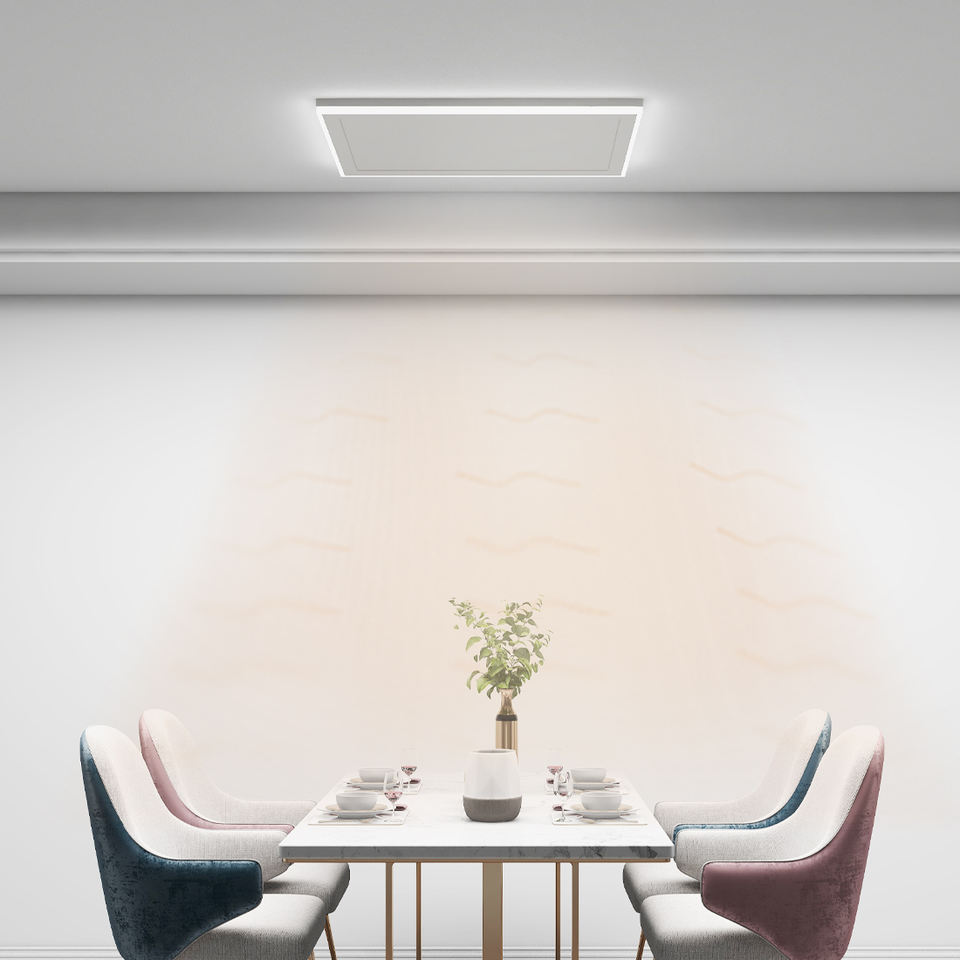

SCENE DISPLAY





Hd51a13e2ee5b40148e5d14f06e574acfM.jpg_960x960
H575e9feb2d69478db458b30823449d3cT.jpg_960x960
H4fc13d4ad0cf4fb7889795c0e2c4feba8.jpg_960x960
H6a5ebcc7f41442c1b246d9e67ca75195k.jpg_960x960
