Room IR Heater with plug-in wifi and remote thermostat

  • MODEL NUMBER
    HL1206P + WK5
  • WARRANTY
    5 years
  • POWER
    700w
  • SURFACE TEMPERATURE
    Mainly 80-100 °C
  • POWER SOURCE
    Electric
  • INSTALLATION
    Ceiling;Wall Mounted
  • FUNCTION
    Adjustable Thermostat;Overheat Protection;Remote Controlled
  • AFTER-SALES SERVICE PROVIDED
    Return and Replacement



PRODUCT DETAILS



Simple and Practicable Structure



This HL series has a simple but very structure. Product design solemn thick,massive and steady,more firm and durable. Surface can be printed with your own logo or preferred picture,really the first choice for space heating in household use. The new product is thinner, lighter and better IR efficiency than before, with same quality and performance. Different model, size, power and good price for choosing. Suitable for wall and ceiling installation.



HEATING METHOD



Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust free environment..



SIMPLE INSTALLATION



The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users



SAFETY



No pipes, chimneys, potential gas, oil or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high). Our heating panels comply with all European safety standards (ROHS, CE , GS and TüV).







Remote-controller, Plug-in receiver and Smart Life APP constitute the temperature control system.

with following functions:
* WIFI remote control
* Remote control
* Temperature adjust
* Flexible Programming,
* Temperature setting
* Count down power off
* Group control
* Share to other users





Open Window Detection.

The thermostat will automatically turn off the heating device if a sudden drop in temperature in the room is detected



This remote-controller has a LCD screen which can display current and past 24 hours room temperature and humidity, which acquires
room temperature and transmit signal to the heater receiver.

Perfect Corner/Diamond Cutting

The corners fit together perfectly,no any gap or metal burr.The solid connectors and the cambered surface of frame both make the structure more steady.

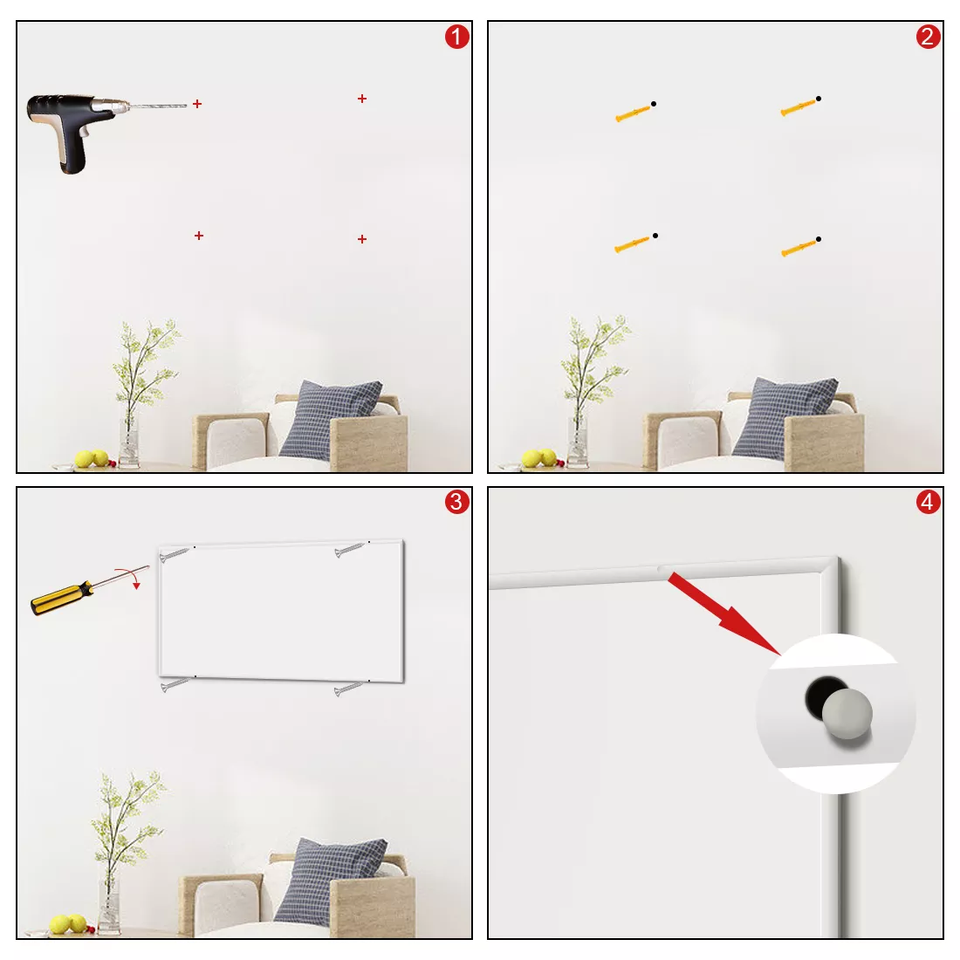

Easy mounting holes at Frame

There is 4 mounting holes at the front frame for easily mounting, users can just punch holes on the wall according to the position of the mounting holes on frames and twist the screws directly.

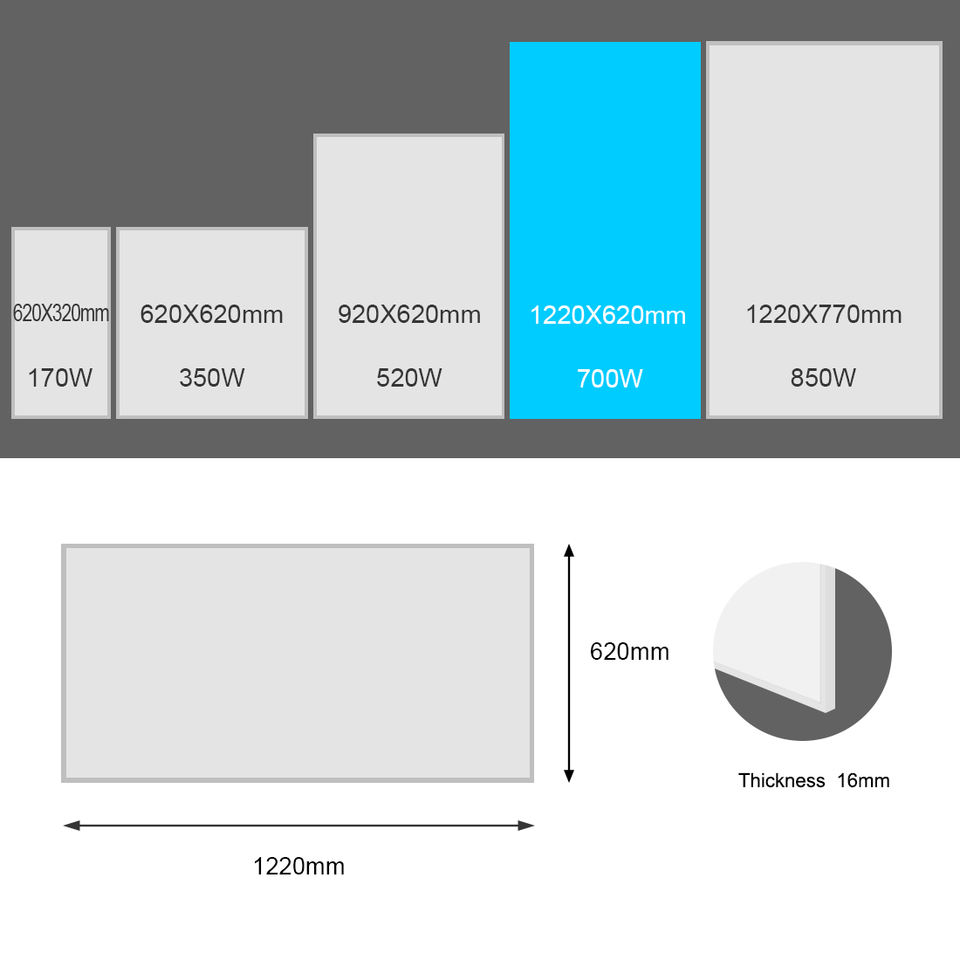

SPECIFICATION



Available in different sizes and powers
Model number
Size
        Rated power          (wall mounting only)
  Rated power
(wall/ceiling mounting)
Box size
HL0605
620*520*15mm
290W
220W
70*58*6cm
HL0606
620*620*15mm
350w
270w
70*68*6cm
HL0706
720*620*15mm
400w
320w
80*68*6cm
HL0906
920*620*15mm
520w
450w
110*68*6cm
HL1206
1220*620*15mm
700w
550w
130*68*6cm
HL1207
1220*770*25mm
820w
650w
130*83*6cm
HL1209
1220*920*15mm
1050w
800w
130*98*6cm
